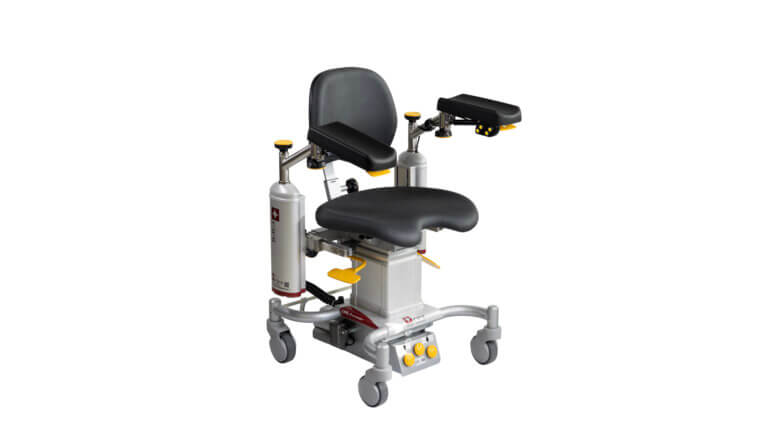

Surgeon chair — Carl Spring
Surgeon chair with mechanical height adjustment by an ergonomically designed foot control under the chair. Available with “Rilis” armrests R6 which have a patented safety property that prevents them from being dislocated when under load, or the “OneGrip” armrests R7 when smaller adjustments must be made under sterile coverage during surgery.
- High level of comfort for the surgeon within Eye-, ENT-, Neuro, Plastic-, Dental-, Robot-, and similar types of microsurgery
- Can be outfitted with different armrests to match different needs, all easy to use with intuitive settings
- Mechanical height adjustment with an ergonomically designed foot control under the chair
- Stable design which guarantees a comfortable and safe workplace
Rini’s surgeon chairs in the “Carl” series are easy to use and height adjustments are made with the feet to maintain sterile hands during surgical procedures.
Carl Spring is equipped with a gas spring and height adjustments are made with an ergonomically designed foot control under the chair. It offers high comfort for the surgeon and different choice of armrests to match clinical demands. R6 chairs are delivered with Rini’s patented safety armrests “Rilis” which prevent them from being dislocated when under load. R7 chairs with “OneGrip” armrests are popular when minor adjustments under sterile coverage must be made during surgery.
The angle of load on the backrest is self-adapting and the angle of the seat and backrest is adjusted with a simple motion. The chair has big, stable wheels and mechanical brakes on the back wheels.
The surgeon chairs in the “Carl” series are, in close cooperation with surgeons from Sweden and internationally, developed for microsurgery and offers a tailor-made work environment of the highest quality.
General
Weight of unit
55 lb / 25 kg
Wheel frame
Width 20 in x Length 21 in (520 mm x 530 mm)
Cushions
Vinyl - black or blue (standard) or other colors / materials as accessories
Operator
Lifting capacity
265 lb / 120 kg
Height adjustment
540 – 680 mm - foot control
Armstöd
Model R6
”Rilis” armrest
Shape
Boomerang (standard) - other types to order
Adjustments
Height, angle and length with buttons
Model R7
”OneGrip” armrest
Shape
Cup shaped
Adjustments
Up / down by one grip
Backrest
Type
Standard H 350 mm x W 300 mm - other types to order
Adjustments
Angle -8° till +12°
Height adjustment
80 mm
Seat
Type
Standard L 420 mm x W 460 mm - other types to order
Inclination
Angle +3° till -12°
Brake
Type
Mechanical for rear wheels
